規(guī)格
|
H3
|
n-M1
|
ΦD
|
L1
|
L2
|
L
|
H2
|
重量(KG)
|
|
PN1.0
|
PN1.6
|
|
DN40
|
71
|
4-M16
|
4-M16
|
110
|
33.5
|
30
|
161
|
231
|
3.6
|
|
DN50
|
82.55
|
4-M16
|
4-M16
|
125
|
42
|
32
|
161
|
242.93
|
5.06
|
|
DN65
|
95.25
|
4-M16
|
4-M16
|
145
|
45
|
47
|
161
|
273.63
|
5.53
|
|
DN80
|
101.6
|
4-M16
|
8-M16
|
160
|
45
|
65
|
161
|
301.38
|
7.36
|
|
DN100
|
123.83
|
8-M16
|
8-M16
|
180
|
52
|
91
|
188
|
386.53
|
11.91
|
|
DN125
|
138.53
|
8-M16
|
8-M16
|
210
|
55
|
112
|
188
|
423.73
|
15.2
|
|
DN150
|
149.23
|
8-M20
|
8-M20
|
240
|
56
|
146
|
188
|
456.43
|
20.98
|
|
DN200
|
180.98
|
8-M20
|
12-M20
|
295
|
61
|
194
|
268
|
596.35
|
28.07
|
|
DN250
|
209.55
|
12-M20
|
12-M24
|
350
|
66
|
242
|
268
|
668.6
|
41.5
|
|
355
|
|
DN300
|
247.65
|
12-M20
|
12-M24
|
400
|
77
|
292
|
268
|
806.55
|
50.5
|
|
410
|
|
DN350
|
279.4
|
12-M20
|
16-M24
|
460
|
77
|
325
|
268
|
894.3
|
79.73
|
|
470
|
|
名稱Name
|
材料Materials
|
|
閥體Body
|
灰鑄鐵、球墨鑄鐵、鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel 304,Stainless Steel 316，Stainless Steel 316L
|
|
閥板Disc
|
球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
|
閥座Seat
|
三元乙丙、丁腈、聚四氟乙烯、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
|
閥軸Stem
|
45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
|
|
產(chǎn)品型號Products Model
|

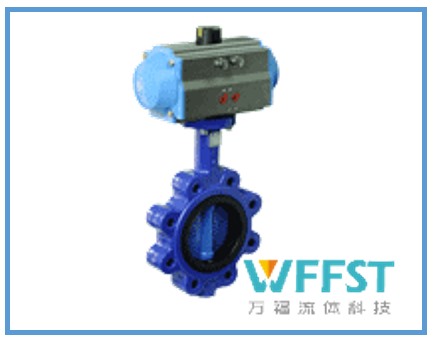

662D67L1X-10/16
|
|
公稱通徑(mm)Normal Diameter
|
DN40-DN600
|
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
|
適用介質(zhì)Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
|
適用溫度Applicable temperature
|
-10～110℃
|
|
